Our products
MULTILAYER PIPES
Braseli multilayer pipes are manufactured according to standard EN ISO 21003 "Multilayer piping systems for hot and cold water installations inside buildings" and they have AENOR System Certificates with Braseli metallic press fit fittings and plastic press fit fittings.
RT is a polyethylene that is resistant to temperature. In multilayer pipes a layer of aluminium and an outer polymer adhere to the inner pipe (PE-RT) with the main objective of obtaining pipes that dilate less and are therefore suitable for being used in open or exposed installations.
Product Catalogue MULTILAYER PIPES
Download PDFFEATURES BRASELI MULTILAYER PIPES
CROSSLINKED POLYETHYLENE (PE-Xa and PE-Xb) PIPES
Braseli crosslinked polyethylene (PE-X and PE-Xb) pipes are manufactured according to standard EN ISO 15875: "Plastic piping systems for hot and cold water installations. Crosslinked polyethylene (PE-X)" and they have AENOR System Certificates with Braseli metallic press fit fittings, plastic press fit fittings, metallic sliding sleeve fittings and with plastic expansion sleeve fittings. Braseli’s PE-X System with metallic sliding sleeve fittings also has the QB certificate.
Product Catalogue PE-X PIPES
Download PDFFEATURES BRASELI PE-X PIPES
Temperature Resistant Polyethylene (PE-RT) Pipes
Braseli temperature-resistant polyethylene (PE-RT) pipes are manufactured according to standard EN ISO 22391 "Plastic piping systems for hot and cold water installations. Temperature-resistant polyethylene (PE-RT)" and they have AENOR Quality Certificate as well as QB Quality Certificate..
PE-RT pipes, due to their molecular structure, do not need to be subjected to a cross-linking process in order to obtain a high resistance to pressure and temperature. They have very similar characteristics to those of PE-X pipes, with a high degree of flexibility. They can be installed with the same type of press fit and sliding sleeve fittings than Braseli crosslinked polyethylene (PE-X) pipes, or welded connections can be carried out.
Anti-Oxygen Barrier EVOH Pipes
Pipes with an anti-oxygen barrier layer are recommended by standard EN 1264 "Underfloor heating. Systems and components". Due to the permeability of crosslinked polyethylene or temperature-resistant polyethylene pipes to oxygen molecules, there is the possibility that the water circulating inside the circuits could receive oxygen from the air which may cause greater corrosion of the metal components in the installation.
Crosslinked polyethylene (PE-X) and temperature-resistant polyethylene (PE-RT) pipes with anti-oxygen barrier EVOH have a layer adhered to them which reduces the oxygen permeability of the pipes to a minimum. Braseli PE-X and PE-RT pipes with EVOH layer are certified by AENOR according to their corresponding standards EN ISO 15875 and EN ISO 22391 and also have QB Quality Certificate.

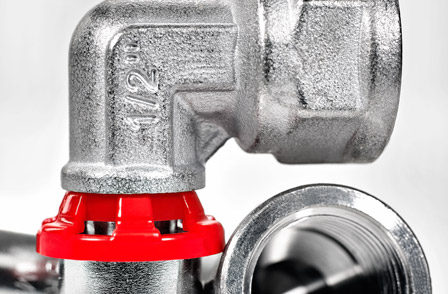

METALLIC PRESS FITTING SYSTEM FOR MULTILAYER PIPES
Braseli metallic press fitting system for multilayer pipes is manufactured according to standard EN ISO 21003 and has AENOR Quality Certificate.
Product Catalogue GPF MULT Syst.
Download PDFFEATURES METALLIC PRESS FITTING SYSTEM FOR MULTILAYER PIPES

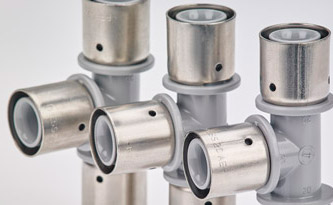

PRESSFITTING SYSTEM FOR MULTILAYER AND
PE-X PIPES
Braseli PPSU press fitting system for multilayer and crosslinked (PE-X) pipes is manufactured according to standards EN ISO 21003 for multilayer and EN ISO 15875 for PE-X and has AENOR Quality Certificates with both types of pipes.
Product Catalogue GPF PPSU Syst
Download PDFFEATURES PPSU PRESS FITTING SYSTEM FOR MULTILAYER AND PE-X PIPES
PLASTIC EXPANSION RING FITTINGS SYSTEM FOR PE-Xa
PIPES
Braseli plastic expansion sleeve fittings system for crosslinked polyethylene (PE-X) pipes is manufactured according to standard EN ISO 15875 and has AENOR Quality Certificate.
Product Catalogue GPF TERM Syst.
Download PDFFEATURES PLASTIC EXPANSION RING FITTINGS SYSTEM FOR PE-Xa PIPES

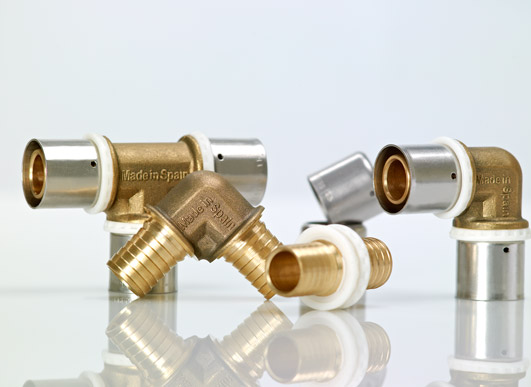

METALLIC PRESS FITTING SYSTEM FOR PE-X PIPES
Braseli metallic press fitting system for crosslinked polyethylene (PE-X) pipes is manufactured according to standard EN ISO 15875 and has AENOR Quality Certificate
Product Catalogue GPF PRESS Syst.
Download PDFFEATURES METALLIC PRESS FITTING SYSTEM FOR PE-X PIPES

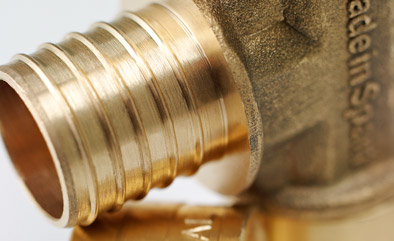

METALLIC SLIDING SLEEVE SYSTEM FOR PE-X PIPES
Braseli metallic sliding sleeve system for crosslinked polyethylene (PE-X) pipes is manufactured according to standard EN ISO 15875 and has AENOR Quality Certificate as well as QB Quality Certificate.
Product Catalogue GPF AXIAL Syst.
Download PDFFEATURES METALLIC SLIDING SLEEVE SYSTEM FOR PE-X PIPES

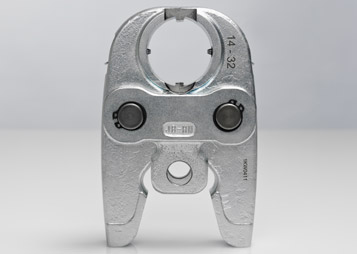

TOOLS
Braseli offers a wide range of tools which are suitable for all its systems.
Product Catalogue TOOLS
Download PDF
ICMA-BRASELI VALVES AND RADIATOR ACCESSORIES
Braseli thermostatic and manual valves for radiator heating installations offer competitive, high-quality solutions for the client.
Product Catalogue VALVES & RADIATOR ACC.

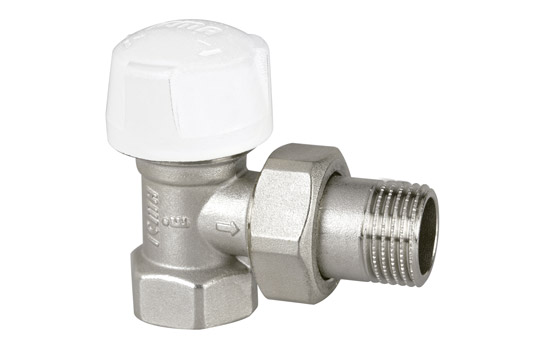

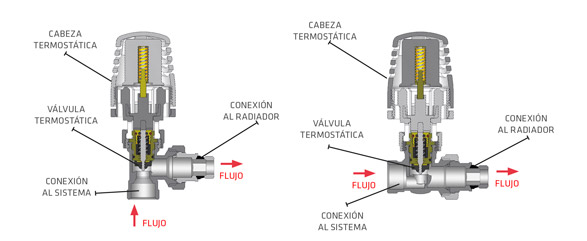

Download PDFThermostatic radiator valves
Thermostatic valves are used to regulate and cut-off the flow of the heat-transfer fluid that circulates inside the terminals of the radiator system. Thermostatic control devices are used in combination with thermostatic valves to automatically regulate, keeping the temperature at a pre-established value.
Braseli thermostatic heads can be installed in all of the Braseli thermostatic valves in order to turn heating systems with a manual operating mode into ones with an automatic operating mode. To install the thermostatic head, simply replace the control of the thermostatic valve with the thermostatic head.
The valves are available in straight and square versions. Braseli standard thread valves are designed for connection to copper pipes, crosslinked polyethylene pipes and multilayer pipes.
The valves are also equipped with an airtight elastic joint. This enables the valve to connect to the radiator easily and safely, without needing to use a sealant.

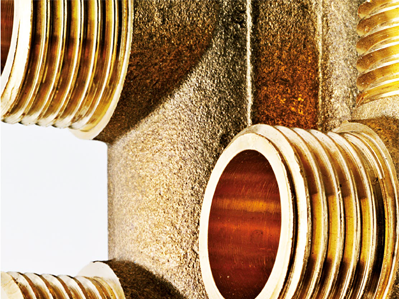

INSTALLATION SYSTEM WITH MANIFOLDS FOR PE-X AND MULTILAYER PIPES
Braseli crosslinked polyethylene systems make it possible to carry out installations with manifolds for plumbing, heating via radiators, industry...
Product Catalogue MANIFOLDS
Download PDF

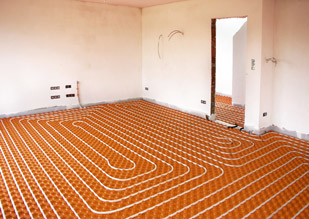

UNDERFLOOR HEATING AND COOLING SYSTEM
Pipes with anti-oxygen barrier are recommended in order to reduce the problems concerning corrosion when plastic pipes are combined with corrosive materials in heating installations.
The pipes are attached, forming circuits which cover the whole surface of the premises to be heated, onto some form of insulation that minimises heat loss towards the lower part of the frame. Another important element for guaranteeing comfort is the control and regulation system.
Underfloor heating is a heating system which involves a circuit of pipes embedded into the mortar located under the flooring through which water of a medium temperature circulates, around 40°C, transmitting, basically through radiation, heat into the room.
For underfloor heating systems, the characteristics and requirements can be found in the standard EN 1264 "Underfloor heating. Systems and components".
Braseli PE-X and PE-RT pipes with EVOH anti-oxygen barrier have a layer adhered to them which reduces the oxygen permeability of the pipes to a minimum. In Braseli multilayer pipes, the layer of aluminium serves this function.
Product Catalogue UNDERFLOOR HEATING
Download PDFADVANTAGES BRASELI UNDERFLOOR HEATING

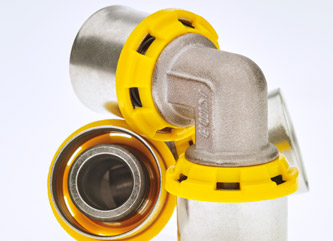

MULTILAYER GAS SYSTEM
The GPF GAS Multilayer System for Gas distributed in Spain is the result of the experience of several years manufacturing the product for this application in different countries in which regulations already allowed for it.
Pipes are made up three layers, two made from plastic material and an intermediate layer made from aluminium. The layers are joined using a special adhesive which binds them together and provides:
GPF GAS PE-AL-PE multilayer gas pipes are manufactured according to standard UNE 53008, which is the only one provided for in the Spanish gas standard.
The jointing system for GPF GAS multilayer pipes combines comfort and speed of installation with safety. Two NBR o-rings increase the safety guarantee.
Product Catalogue GPF GAS Syst.
Download PDFFEATURES MULTILAYER GAS SYSTEM

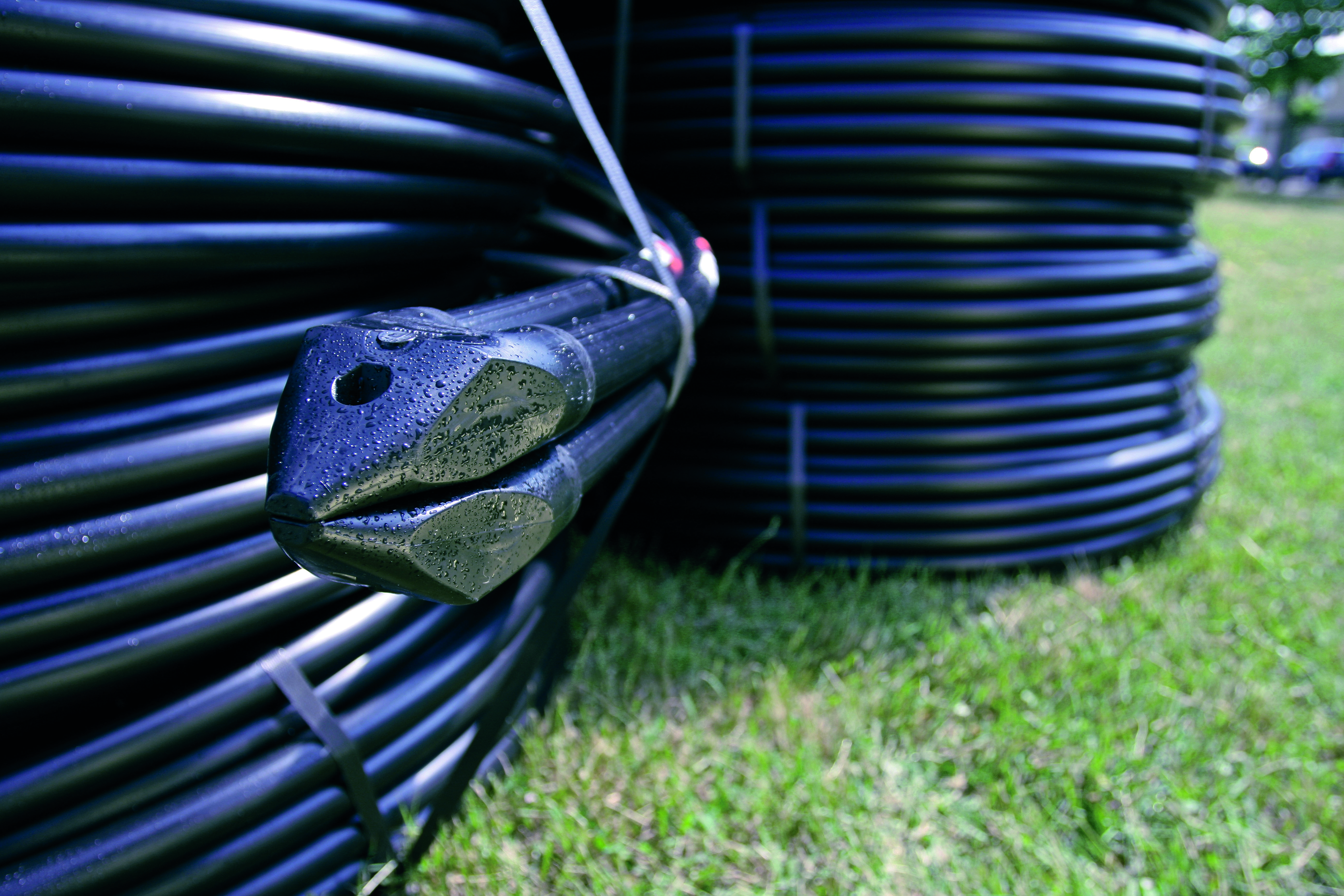

GEOTHERMAL SYSTEMS
Braseli markets its Geothermal Environmental Technology as well as the FRANK GET German manufacturing system, which allows for the heating and cooling of buildings thanks to a vast range of innovating solutions for the extraction of geothermal energy through probes and heat pumps.
A large variety of manholes, manifolds and all the components that are part of a modular system designed for the distribution of heat obtained from the natural environment are also provided: pipes, fittings, valves and welding technology.
Product Catalogue Geothermal Systems
Download PDFADVANTAGES GEOTHERMAL SYSTEMS
